Model Shipways USS Constitution Cross-Section 1797 Scale Wooden Ship 1:76 Model Kit

The Part Everyone Wishes They Could See

Most ship models show you the outside of the ship. This one shows you how she was built. Why spend months planking a massive 48-inch hull when the most fascinating part of "Old Ironsides" is hidden deep inside?

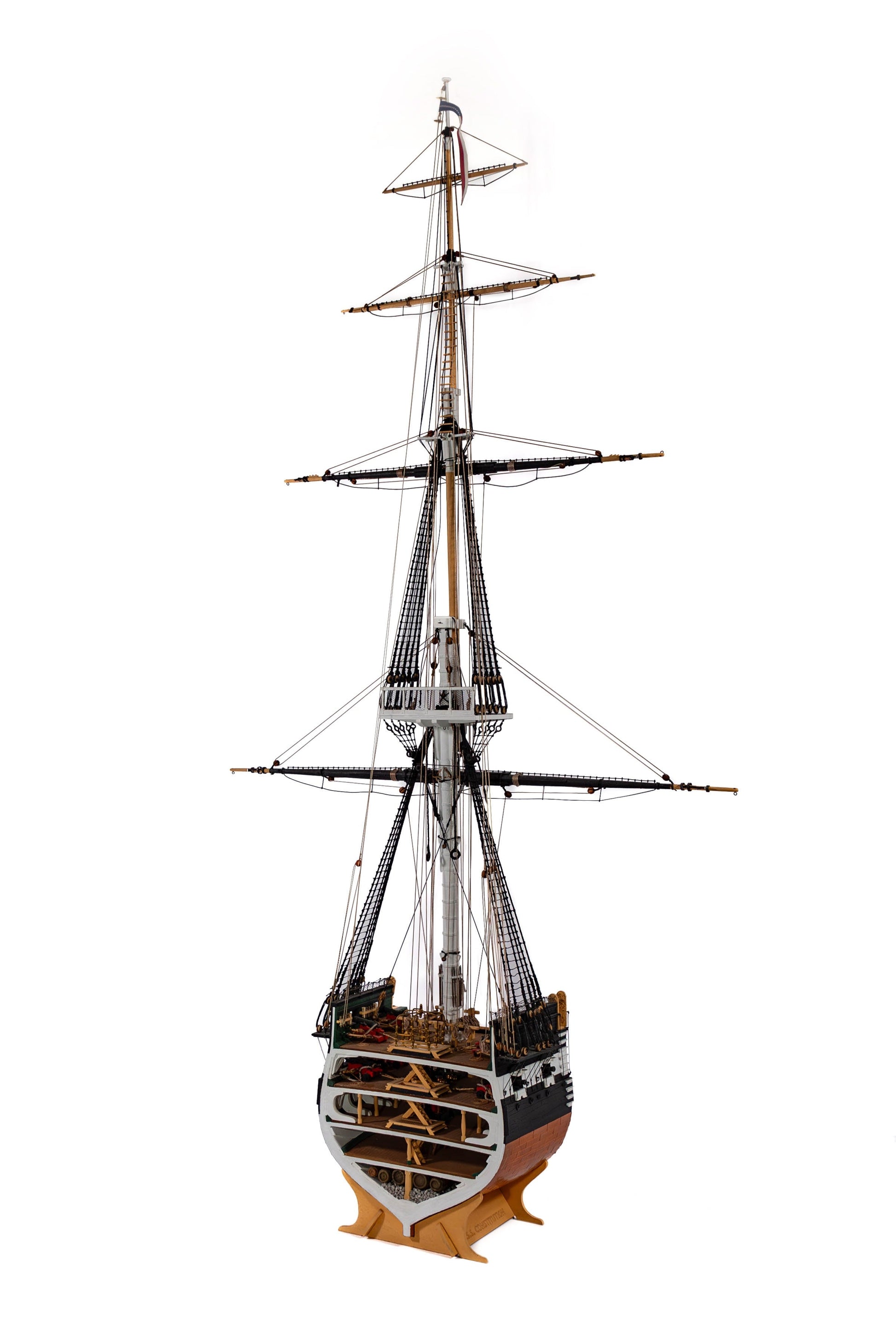

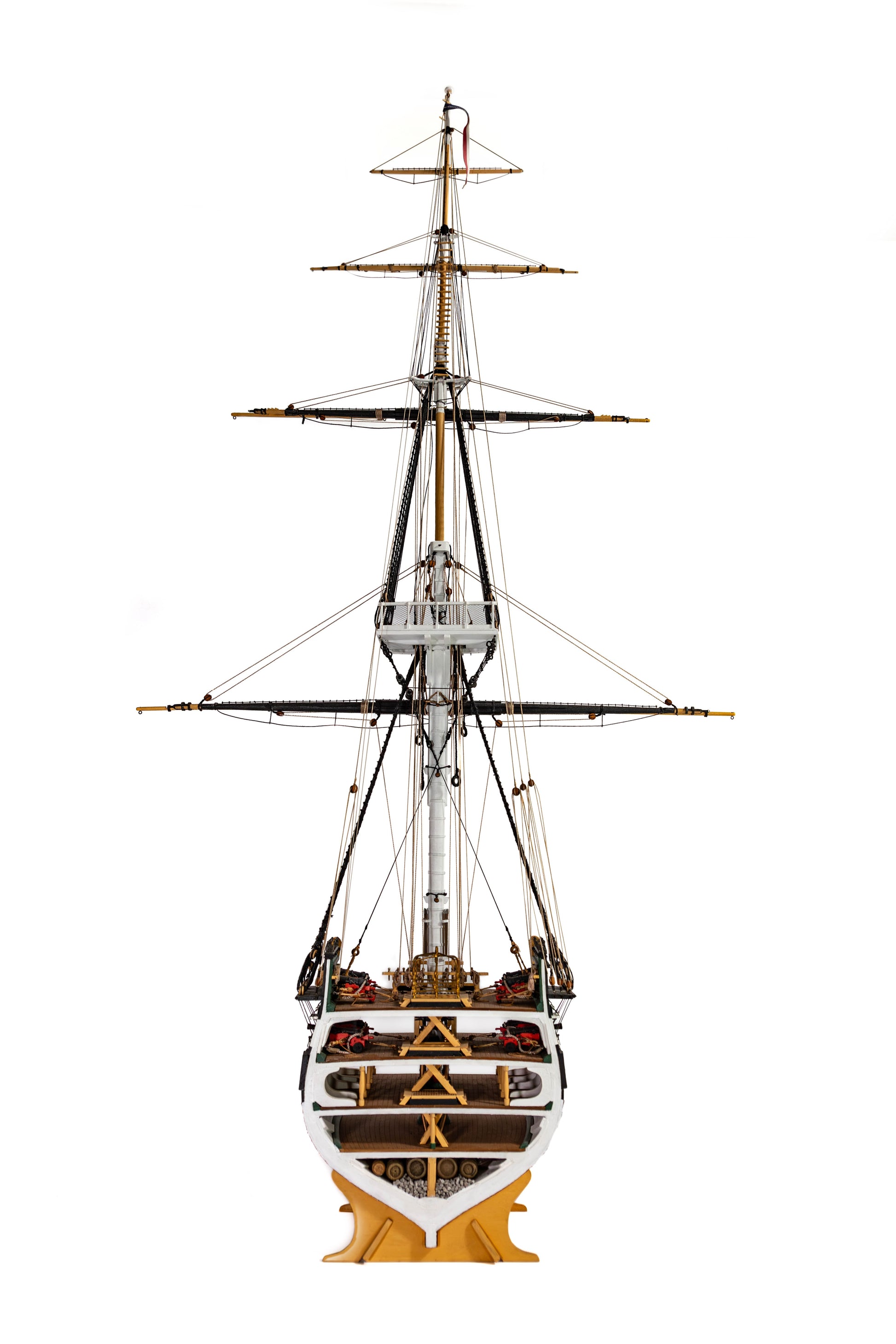

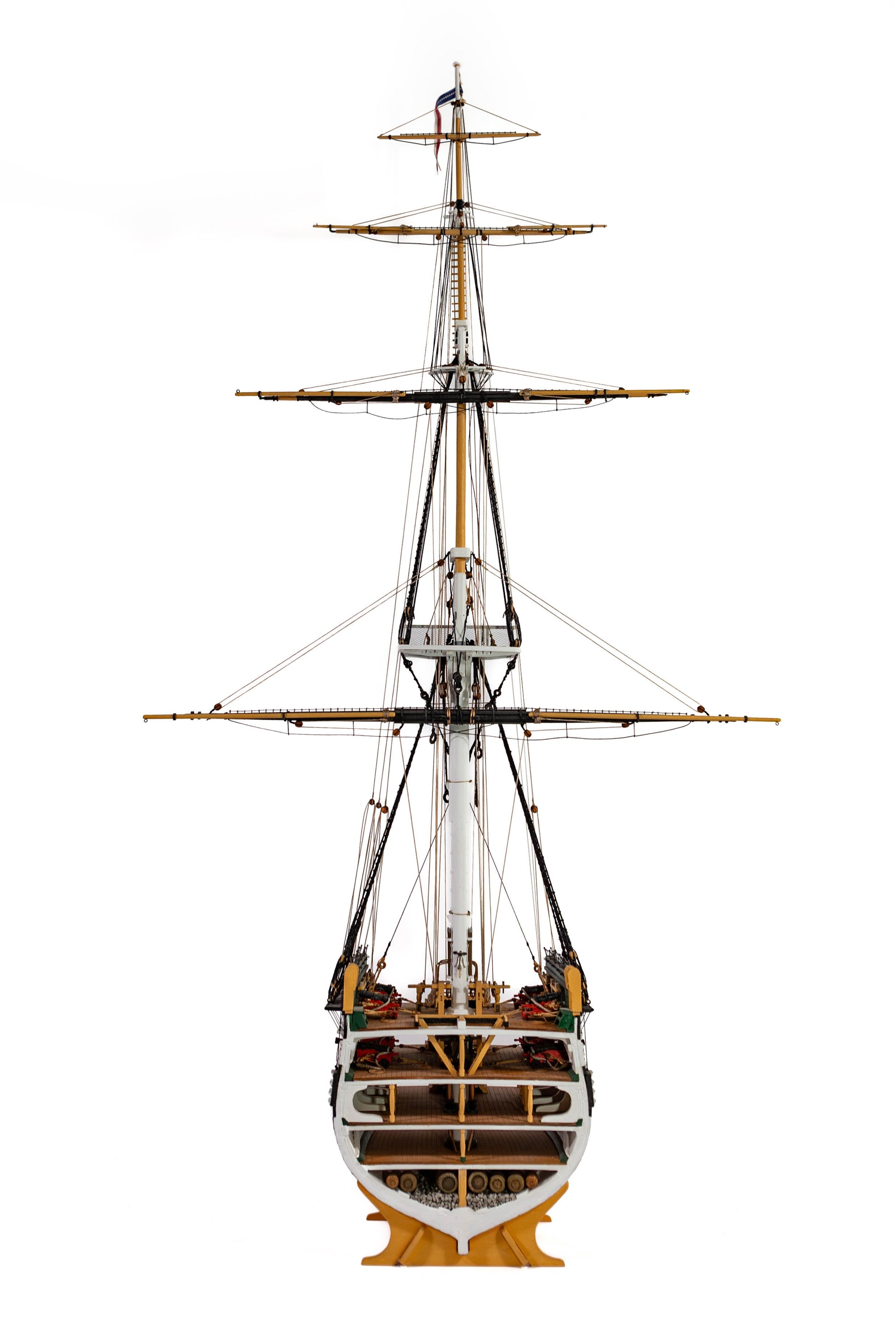

The Model Shipways USS Constitution Cross-Section reveals the decks, framing, cannon batteries, rigging, and internal structure normally concealed beneath layers of hull planking. Based on modern restoration research and documentation from America's most famous warship, this remarkable model offers a rare look into the engineering and craftsmanship that made the USS Constitution a legend.

The result is less a ship model and more a museum exhibit you build yourself.

⚓ All the Detail. Less of the Grind.

Let's be honest: Most builders love looking at a fully rigged Constitution, but not everyone loves spending months planking a massive hull, installing hundreds of feet of repetitive rigging, and trying to find shelf space for a four-foot-long warship.

The Constitution Cross-Section delivers the most visually fascinating part of the ship while eliminating much of the tedious labor. You still get authentic planking, rigging, and wooden ship-modeling techniques. But every hour spent building contributes directly to details that remain completely visible on the finished model.

The Constitution Cross-Section delivers the highest-density "cool factor" of the ship while eliminating

⚓ A View Inside "Old Ironsides"

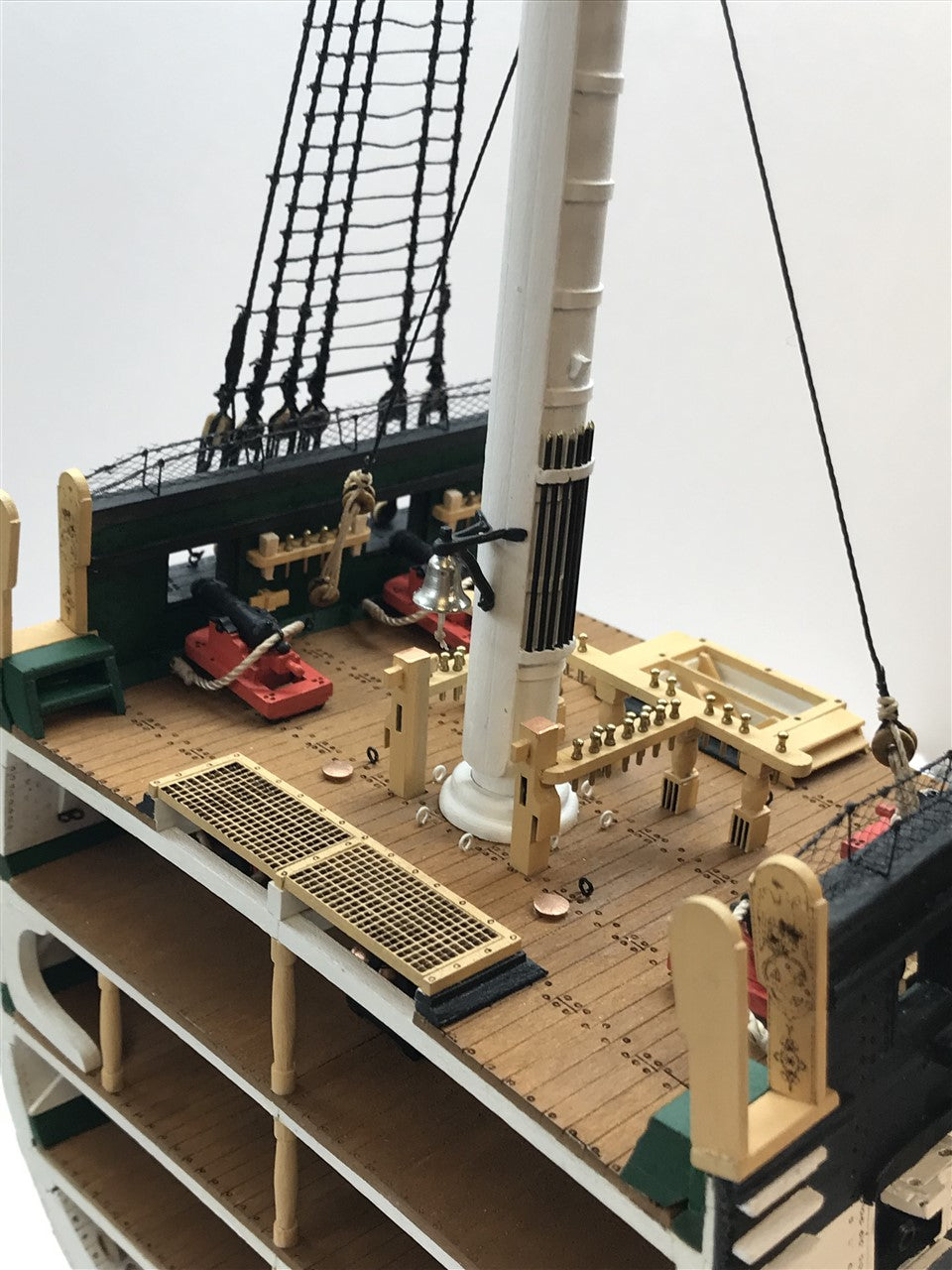

Unlike traditional ship models, your craftamnship isn't hidden when you're done. The open, cutaway design invites people to lean closer and explore the ship's construction:

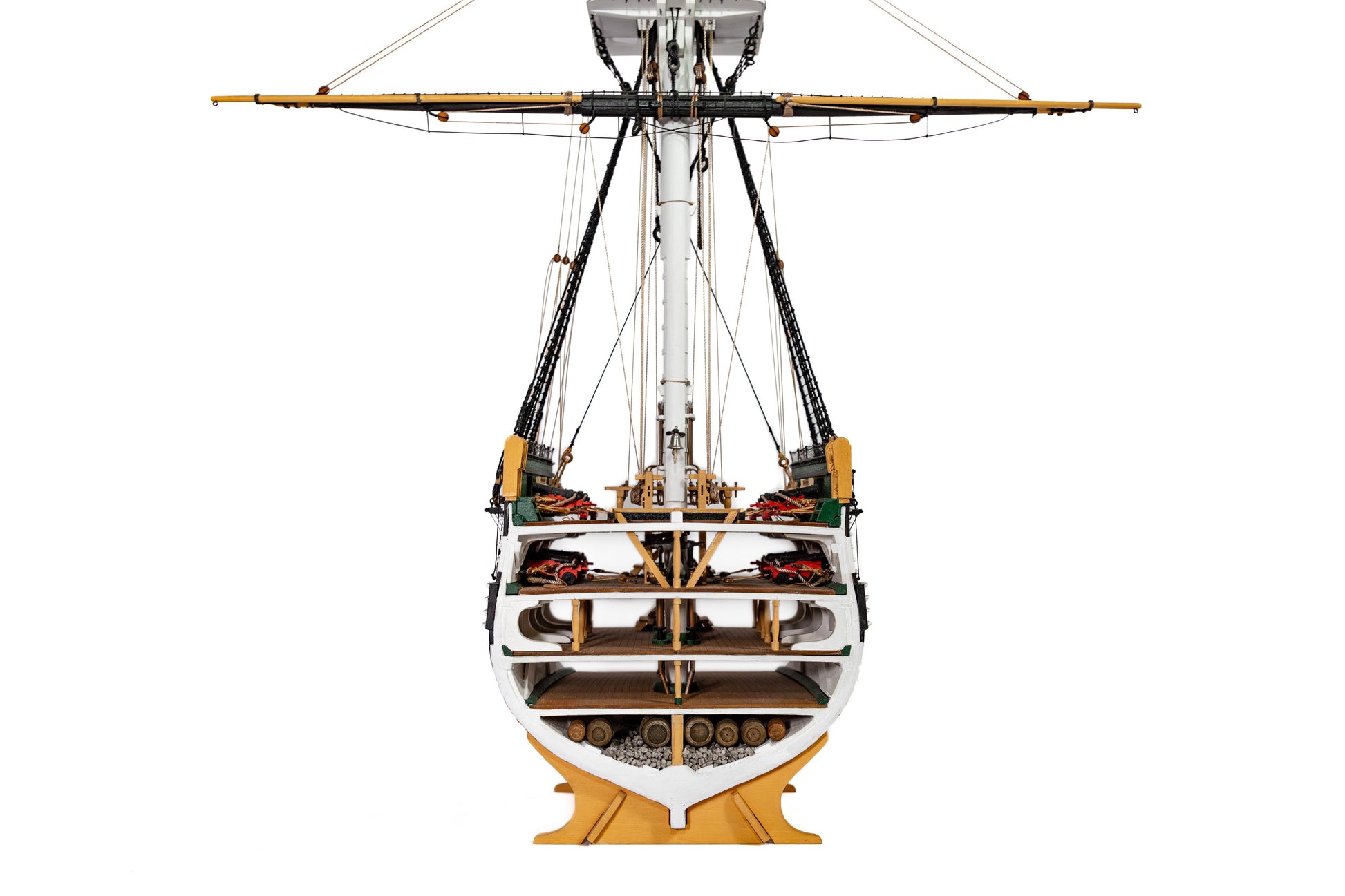

Inspect all four complete, historically accurate decks (no shortcuts or missing levels here).

Follow the massive timber framing and internal ladders.

Study the fully detailed cannon batteries and deck furniture.

Most ship models are admired. This one gets studied.

⚓ Based on Modern Restoration Research

This highly detailed cross-section represents the USS Constitution using research derived directly from Navy drawings, photographs, and documentation associated with the ship's actual preservation work in Boston Harbor. It provides a historically flawless glimpse into the architecture of America's most celebrated warship.

Premium Materials Throughout

Every component in the box has been selected to create a museum-quality display piece. Nothing feels generic; everything feels purpose-built:

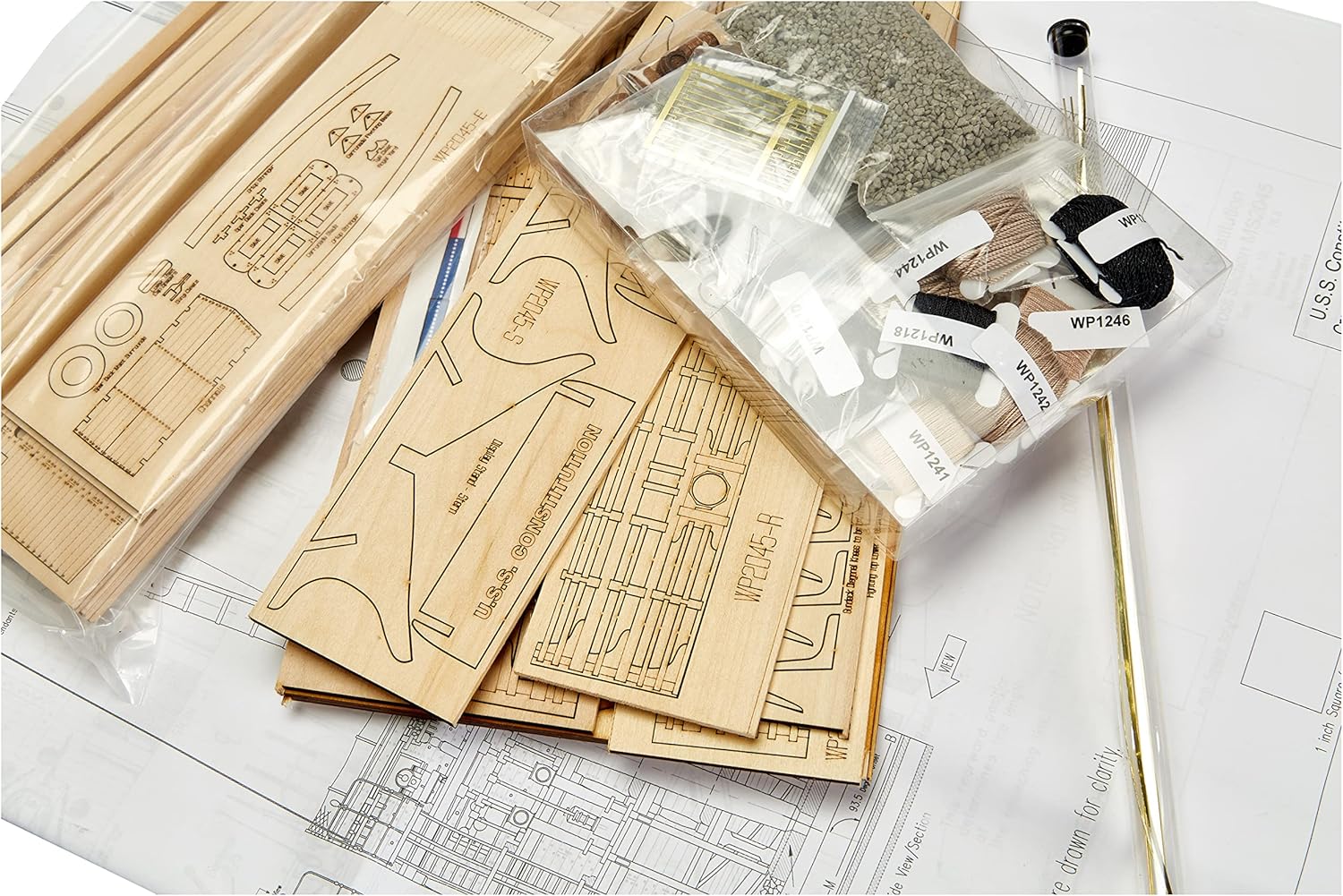

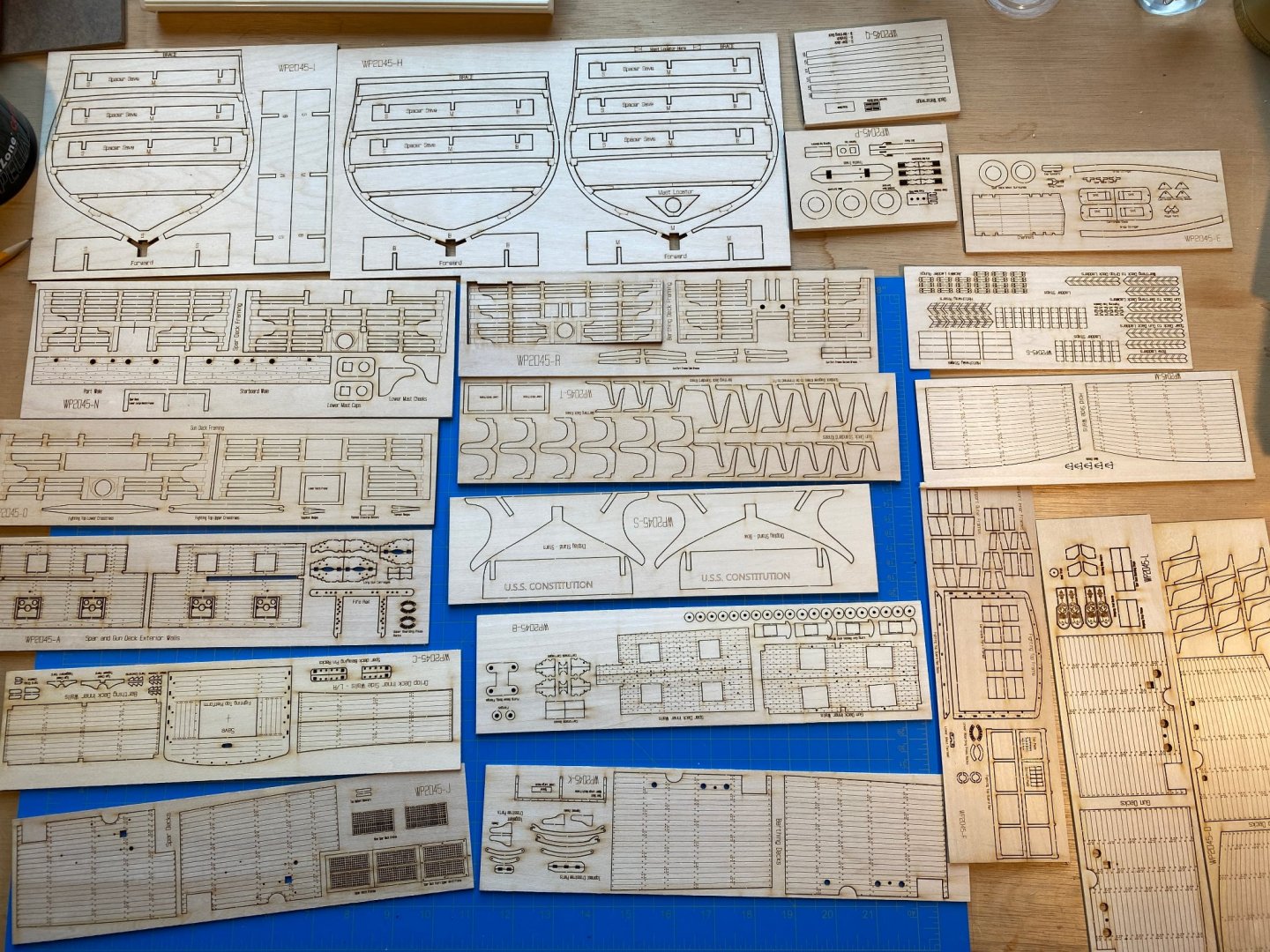

Precision Laser-Cut Framework: A robust 5mm laser-cut plywood bulkhead and false keel system creates a rigid, commercial-grade foundation that completely prevents warping and maintains perfect alignment throughout construction.

Fine-Grained Basswood Planking: Premium basswood, a favorite among master modelers for its smooth finish, clean workability, and crisp appearance when stained or painted.

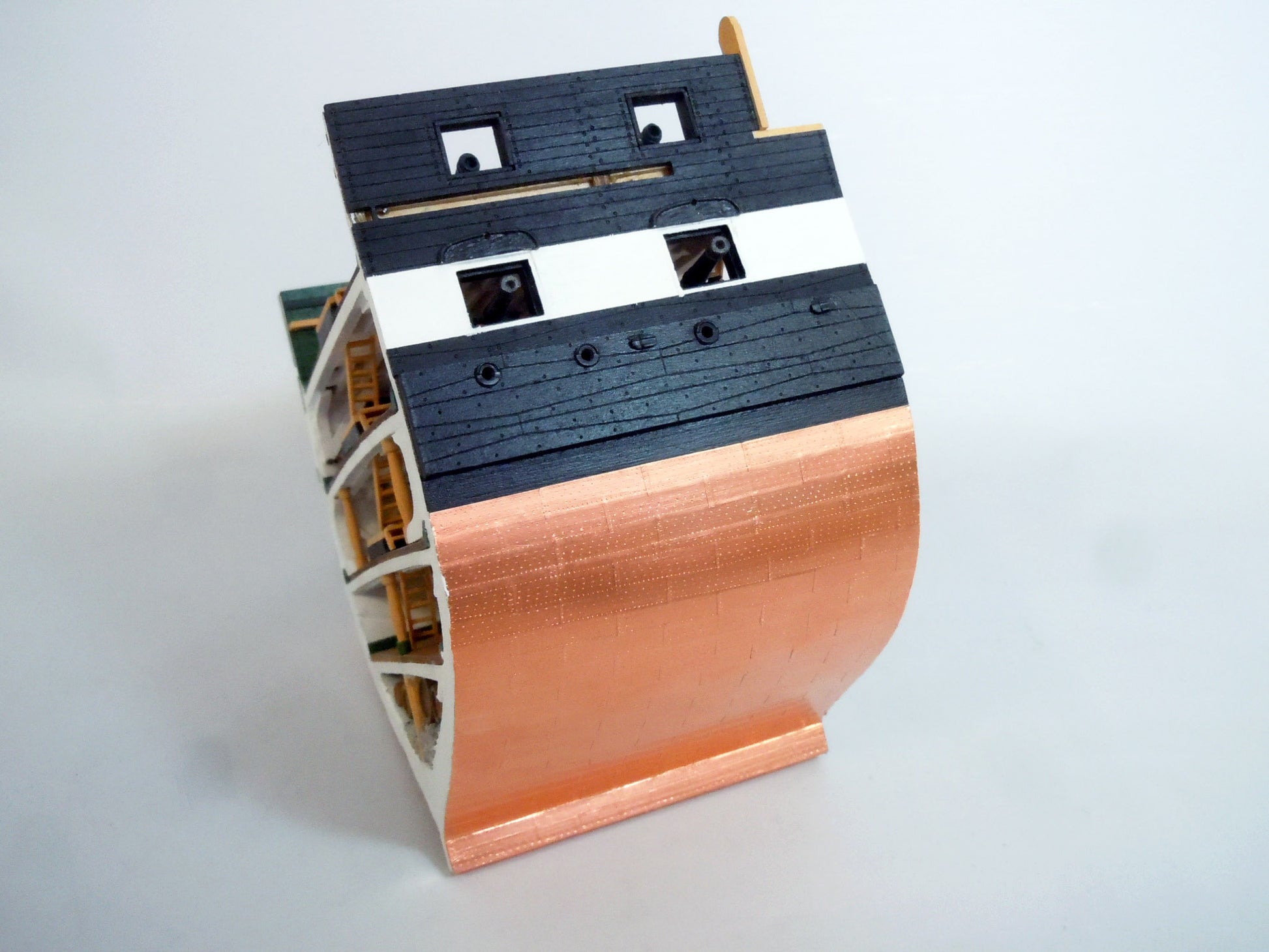

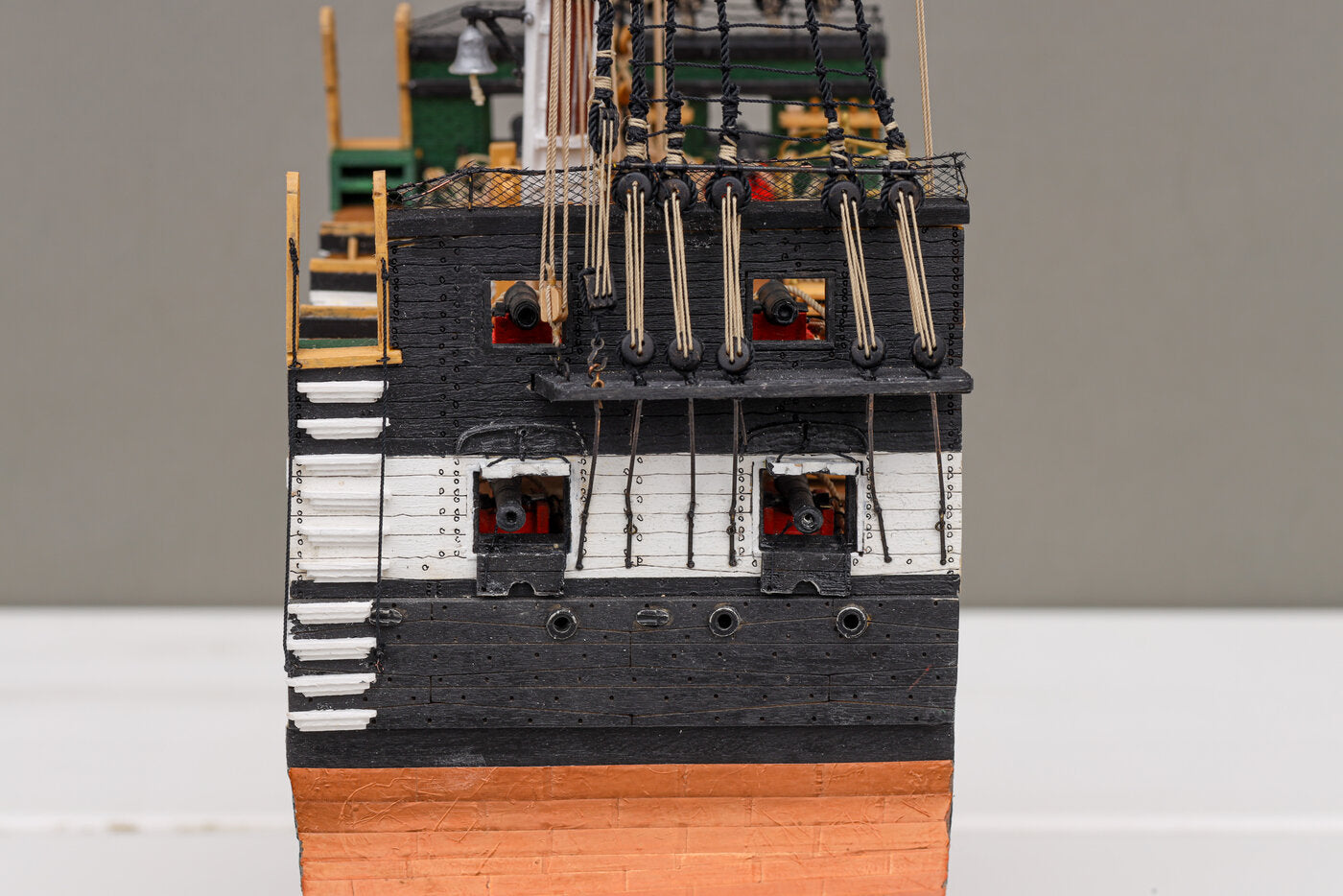

Authentic Copper Sheathing: Includes premium self-adhesive copper foil to accurately recreate the protective hull plating that became one of the ship's most recognizable features.

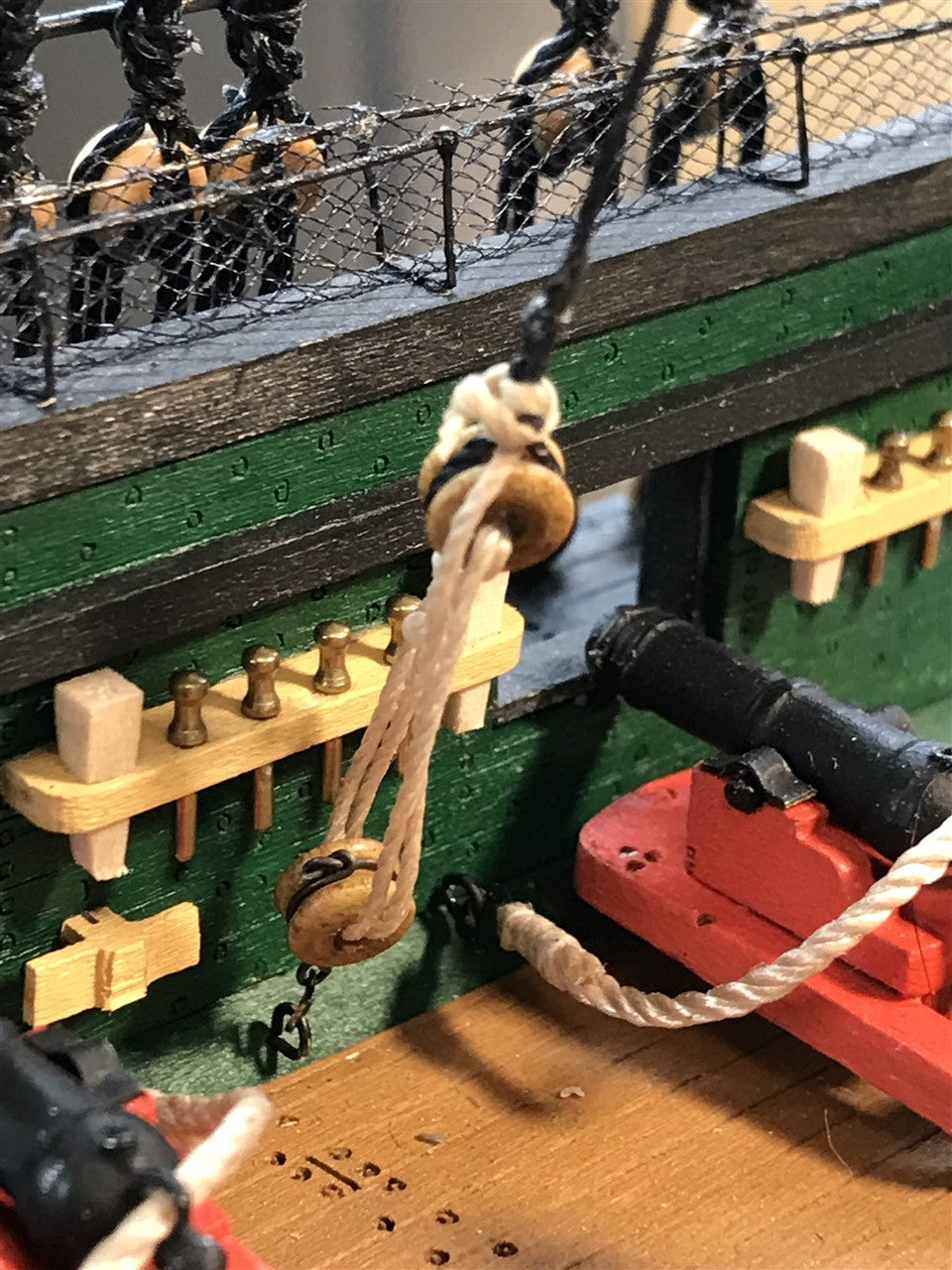

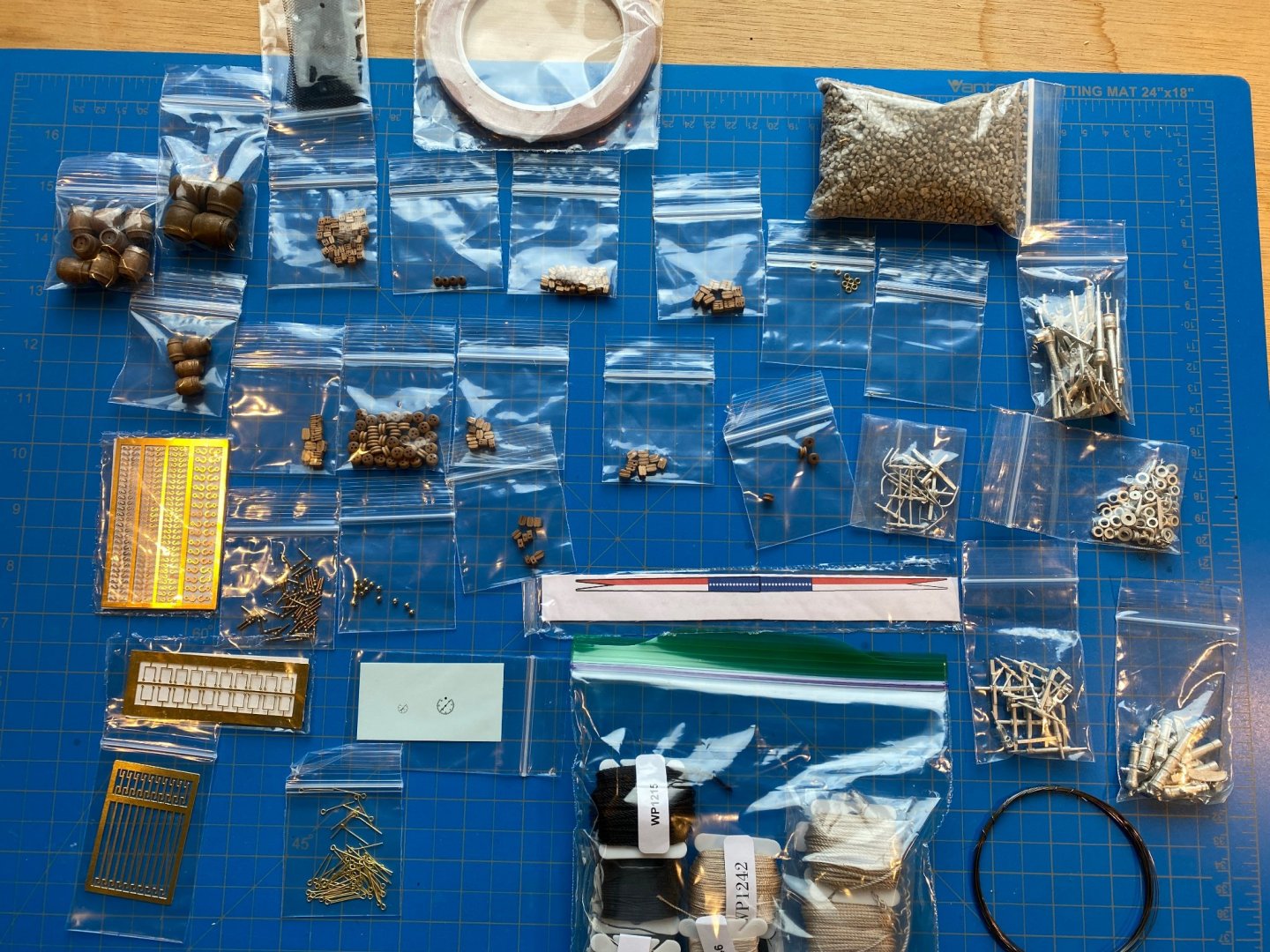

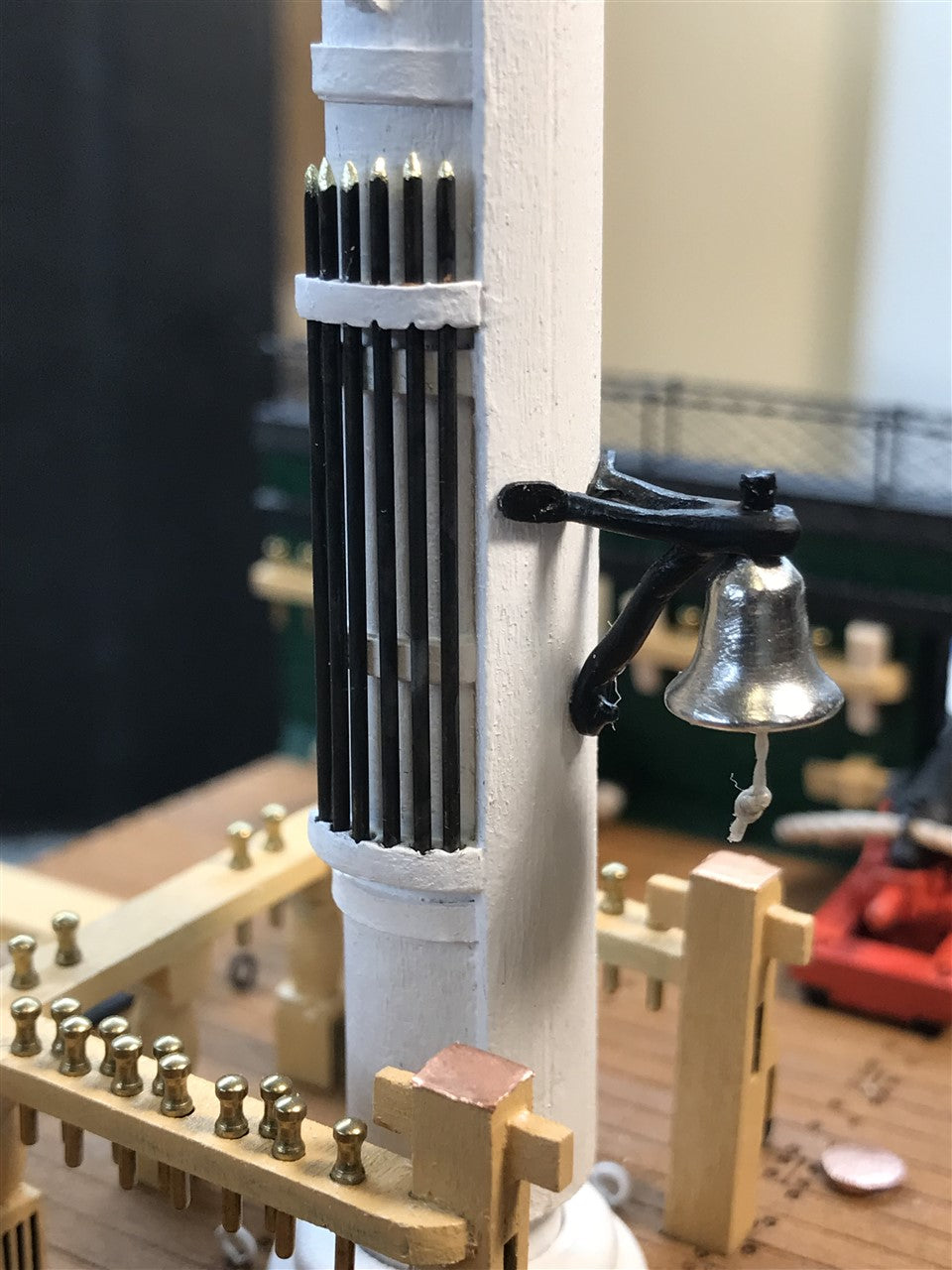

High-Quality Fittings: High-detail cast Britannia metal fittings, photo-etched brass detail sheets, brass belaying pins, and genuine walnut blocks and deadeyes.

Premium Rigging Materials: Jewelry-quality, German-made non-stretch rigging line supplied in multiple sizes and colors to accurately represent standing and running rigging.

Instructions That Actually Guides

Many ship model kits assume you already have a master's degree in 18th-century naval architecture. This one doesn't.

The kit includes:

96 pages of highly detailed, step-by-step, fully illustrated instructions.

5 total sheets of plans, including two full-size plan sheets measuring approximately 4 feet long.

Detailed parts maps and clear assembly drawings.

Whether you're building your first advanced ship model or your fifteenth, the documentation guides you logically through every major stage of construction.

(Honestly, the only way we could help more is if we provided emotional support.)

A Perfect Companion Piece

Built to the exact same 1:76 scale as the full-hull Model Shipways USS Constitution (MS2040), this cross-section makes a stunning companion display. Place them side by side to showcase both the majestic exterior of "Old Ironsides" and the intricate craftsmanship hidden within.

Or simply tell visitors: "I built the Constitution... well, the interesting part."

Specifications

Is This Kit Right For You?

Perfect For

✓ Builders fascinated by historic naval architecture

✓ Modelers who enjoy structural details and craftsmanship

✓ USS Constitution enthusiasts

✓ Builders seeking a museum-quality display piece

✓ Anyone wanting a highly detailed project without committing to a full-size ship-of-the-line

✓ Modelers looking to develop planking and rigging skills before tackling larger warships

Probably Not For

✗ Someone looking for a quick weekend project

✗ Builders seeking a snap-together plastic model

✗ Those who specifically want a fully enclosed hull presentation

The Bottom Line

The Model Shipways USS Constitution Cross-Section gives you something most ship models can't:

A look beneath the skin of America's most famous warship.

You don't just build "Old Ironsides." You discover how she was built.
