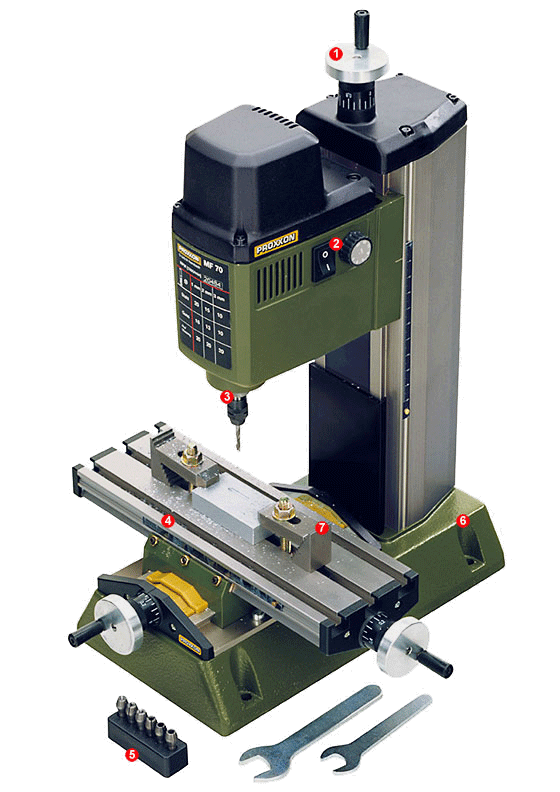

Proxxon - Micro Mill MF 70

The unit is supplied with a stable base of cast iron. Both vertical column and compound table are of treated, high quality aluminum. All axes are play-free and have adjustable slides. The headstock, made of die-cast aluminum, houses the 24 pole balanced special motor and provides stability even at high operating speeds. This stability facilitates the use of the finest cutters. Six triple slit, hardened MICROMOT steel collets come with the machine and cover shank sizes of 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.35, 3.0, 3.2mm). The table is fitted with three T-slots of the 15/32" x 15/64" x 13/64" (12 x 6 x 5mm) MICROMOT-norm. An adjustable ruler scale eases the positioning of the work piece. All hand wheels are zero adjustable with 1 revolution = 1/32" (1.0mm), 1 division = .002" (0.05mm). Technical data: Speed 5,000 - 20,000rpm; Table Size 7 7/8" x 2 3/4" (200 x 70mm); X-Y Travel 5 17/64" and 1 13/16" (134 and 46mm); Vertical Travel 2 3/4" (70mm); Footprint Size 5 7/64" x 8 55/64" (130 x 225mm) Height 13 25/64" (340mm); Max. Power 1/8hp (100W); Volts 110 - 120V AC, 60Hz; Weight 15.5 lb (7kg)
