Ship Modeler's Pounce Wheel – Rivet & Nail Head Embossing Tool for Copper Hull Plating

Create straight, evenly spaced rows of simulated rivets and nail heads in copper hull plating. The sharp-toothed metal wheel rolls smoothly along copper tape or thin copper sheet, while the contoured wooden handle gives you the control needed for consistent detail work.

The Ship Modeler's Pounce Wheel has a fine, needle-point metal wheel that creates a regular line of small impressions as it rolls. On copper tape or thin copper sheet, those impressions reproduce the rows of fasteners seen on full-size copper hull plating—quickly, neatly, and with far better spacing than most of us can manage by eye.

Run it along a straightedge to emboss clean rows before cutting or applying the plates. Adjust the pressure to control the depth of the marks, then repeat for the remaining plates. The result is subtle surface detail that catches the light and makes a coppered hull look considerably more convincing.

Originally designed as a tracing and stitch-marking tool, it happens to be remarkably useful at the ship-modeling bench. We do enjoy finding respectable new employment for tools from other professions.

Why Ship Modelers Use It

Simulates rivets and nail heads: Adds convincing fastener detail to copper-plated hulls.

Even, repeatable spacing: The toothed wheel produces a regular pattern more consistently than marking each point individually.

Fast to use: Detail an entire row with one controlled pass.

Pressure-sensitive results: Use lighter or firmer pressure to vary the prominence of the impressions.

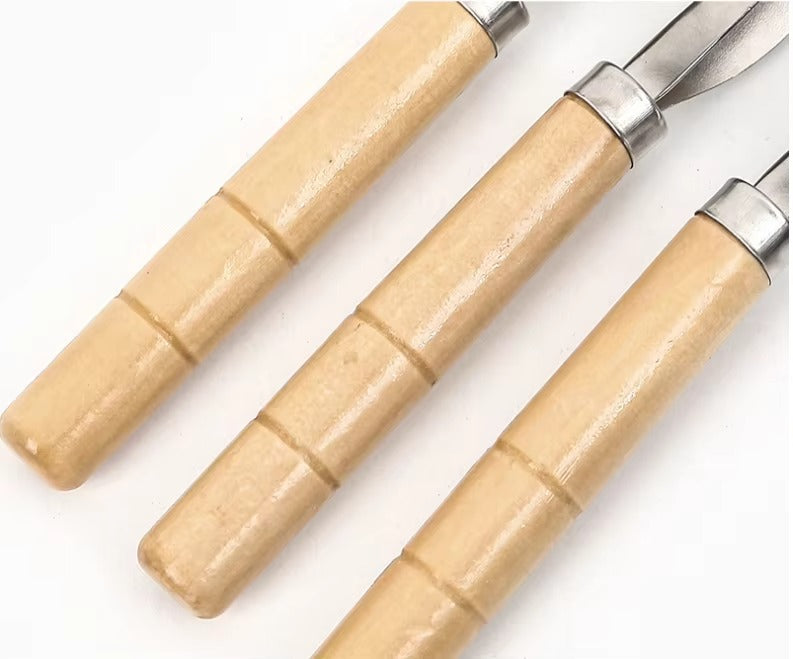

Comfortable wooden handle: Provides a secure grip and good control during repetitive work.

Useful beyond copper plating: Also suitable for marking paper patterns and adding dotted or stitched effects to other soft modeling materials.

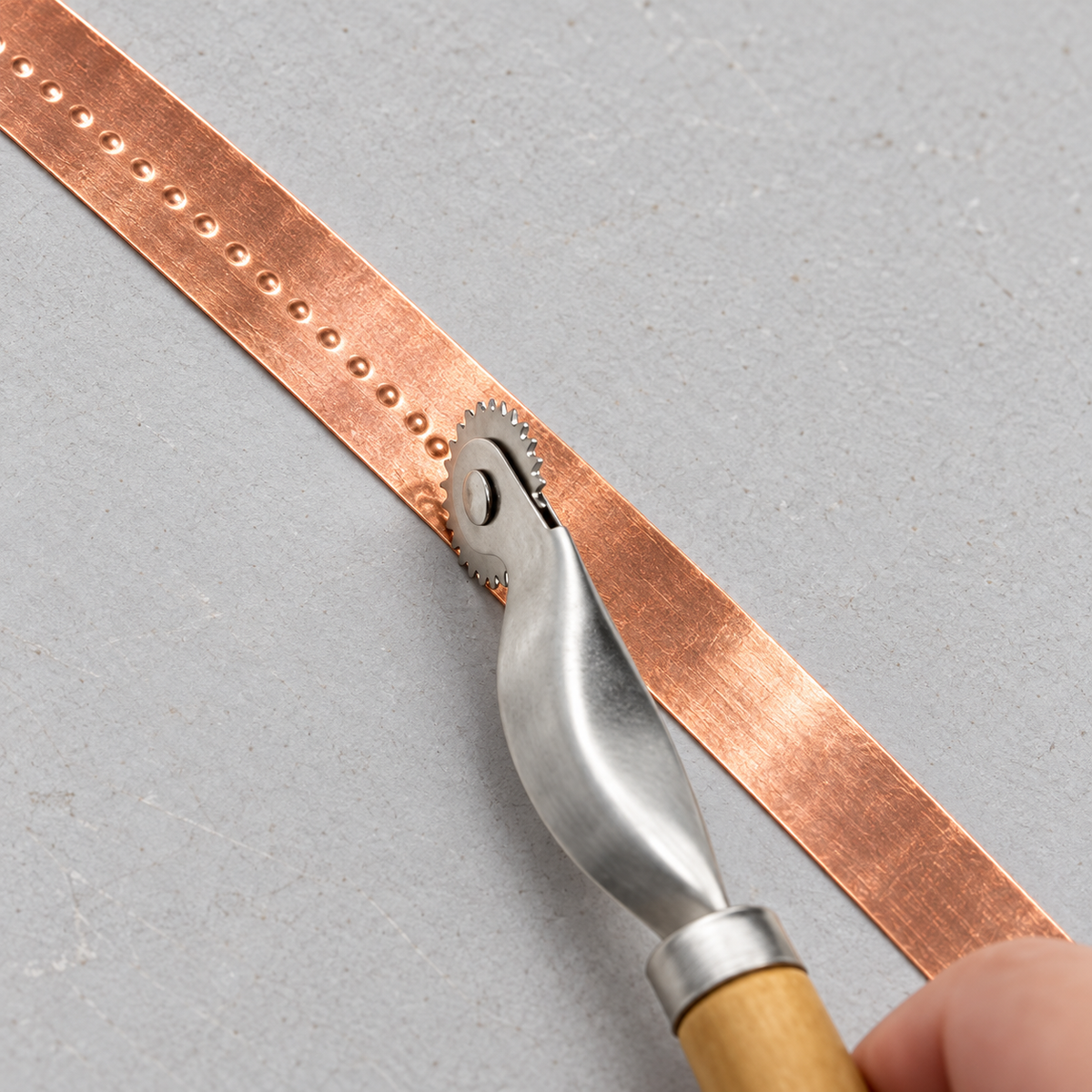

How to Use It on Copper Plates

1. Place the copper tape or thin copper sheet on a firm surface with a slight amount of give, such as a cutting mat or dense card.

2. Position a metal ruler or straightedge where the fastener line should run.

3. Roll the wheel steadily along the edge using light, even pressure.

4. Test the pressure on scrap material first; too much force may pierce or distort very thin copper.

5. Cut and apply the embossed plates to the hull as usual.

For the neatest pattern, emboss the copper while it is still flat rather than after it has been applied to the model.

Product Details

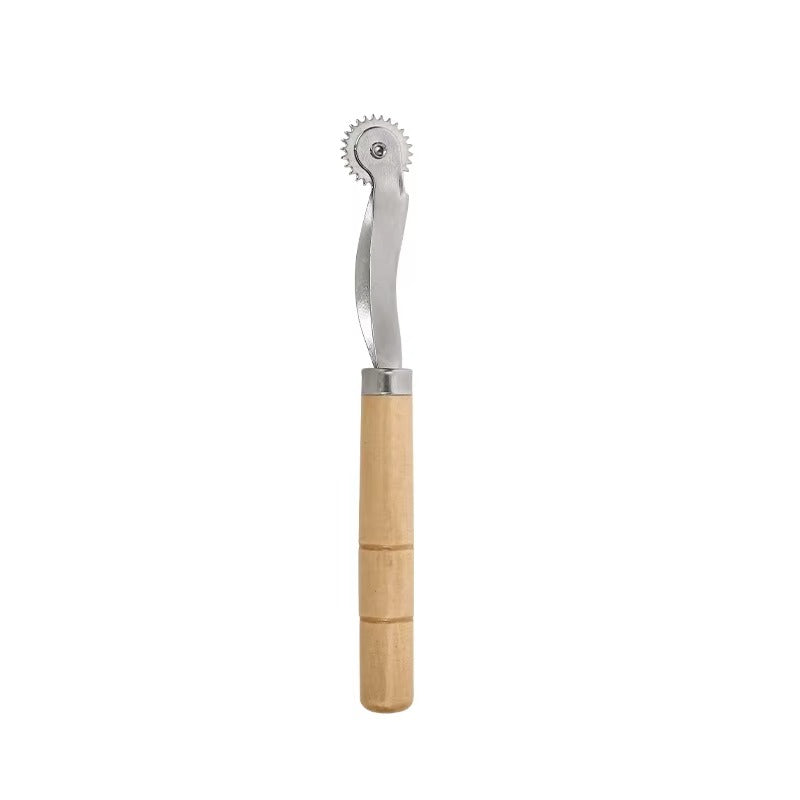

Tool type: Needle-point pounce/tracing wheel

Primary modeling use: Simulating rivets or nail heads in copper hull plating

Construction: Metal wheel and shank with wooden handle

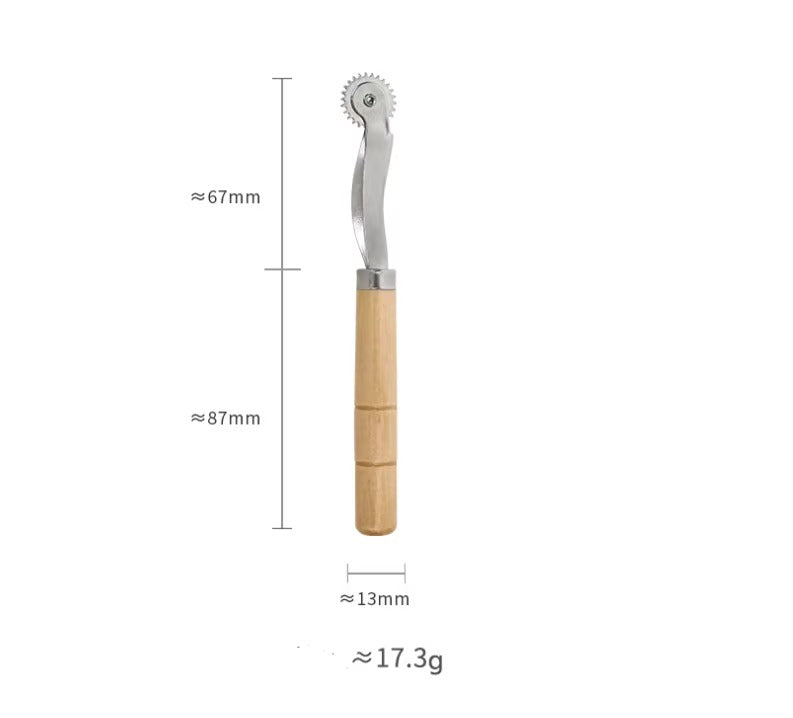

Overall size: Approximately 15.4 × 1.3 cm (6.06 × 0.51 in.)

Operation: Manual rolling action

Quantity: 1 pounce wheel

Please Note

The wheel has sharp points. Keep fingers clear of the working edge and store it safely away from children. The appearance and depth of the impressions will vary with the material, backing surface, and pressure used. Always test on a scrap first.
